Misonics MSX 15 Heated Benchtop Ultrasonic Cleaner

The light-industrial bench

300 W40 kHz swept
10–100%stepless power
8 kgbasket load
Talk to an engineerCall 1300 647 664
Misonics MSX 15 industrial ultrasonic cleaner — Front elevation, lid openClick to enlarge

Front elevation, lid open

A mix of renders from the MSX 15 CAD model and photographs of a production machine. The side elevations are renders — there is no photograph of those views.

The light-industrial bench
$4,367 AUD inc GST ($3,970 ex GST)

The machine for the bench that works every day: a 1.5 mm SS316L tank with the control system of the industrial range.

1
Or ask about a trial

Freight $77 inc GST, road freight Australia-wide. Outside Australia, request a delivered price.

In the box
  • ✓ Stainless basket (320 × 225 × 80 mm)
  • ✓ Torque-hinged lid with condensate deflector
  • ✓ ½" ball-valve drain, fitted
  • ✓ 3 m power lead, standard 10 A plug
  • ✓ Manual · 12-month warranty
Brochure in preparation — spec sheet available on request.
Ships Australia-wide · spares held locally
Specification

Full specification — MSX 15

CAPACITY & DIMENSIONS
Model nameMSX 15
Total Solution Volume17 L
Working Volume (to fill line)15.3 L
Useful Measurement (LxWxD)320×225×130 mm
Tank – Length380 mm
Tank – Width260 mm
Tank – Internal Depth180 mm
Tank – Working Depth130 mm
Basket – Length320 mm
Basket – Width225 mm
Basket – Wall Height80 mm
Maximum Load Capacity8 kg
Overall Unit – Length430 mm
Overall Unit – Width310 mm
Overall Unit – Height370 mm
Machine Weight (Dry)17.5 kg
Machine Packed Weight21 kg
Packaging Dimensions545×225×465 mm
Tank MaterialSS316L – 1.5mm
ULTRASONIC SYSTEM
Ultrasonic Power300 W
Ultrasonic Power Density20 W/L
Ultrasonic Frequency40 kHz
Multi-FrequencyNo
Number of Generators1
Number of Resonators1
Power Adjustable10–100%
Load SensingYes
Degas FunctionYes
Sweep FunctionYes
HEATING SYSTEM
Heating Power0.6 kW
Heating Element TypeSilicone rubber heater pad
Heating Voltage240V AC
Temperature RangeAmbient–80 °C
Safety ThermostatYes
Insulated TankNo
FILTRATION & OIL MANAGEMENT
Displacement WeirNo
Oil Capture & RemovalNo
Auto-FillNo
Main Tank Drain1/2" Ball Valve
CONTROL & SAFETY
Control Panel TypeAcrylic LCD Touch
Programmable CyclesNo
Stored Recipes3
Power InterlockNo
Non-Drip EdgeNo
Lid TypeTorque Hinged – Manual
Remote AccessNo
ELECTRICAL & POWER
Power Supply240V / 50Hz / 1-Phase
Wiring Requirements1P+E+N
Power Cable Provided3 m IEC lead c/w plug
Socket Requirement240 V 10 A 3-pin socket
POWER DRAW
Max Power Consumption900 W
Circuit Breaker – Full Load10 A
COMPLIANCE & WARRANTY
Machine Warranty12 months
Printed ManualYes
Online ManualYes
Electrical Design StandardAS/NZS 3100

Model name is a name, not a volume: the number in MSX 15 is not the litres. Total solution volume is the whole fill, including the pockets that carry the resonators, heaters and platform. Working volume is the liquid to the fill line, 25 mm below the rim. Chemistry doses are worked on this figure. All specifications — incl. dimensions, ultrasonic power and volume — are confirmed at quotation.

Why this machine

The light-industrial bench

The MSX 15 is the machine for the bench that works every day: a 1.5 mm SS316L tank with the control system of the industrial range — stepless 10–100% power, load sensing, three stored recipes on an LCD touch panel. It takes a 320 × 225 mm basket to 8 kg, holds 130 mm of working depth, and is rated for continuous operation — shift after shift is this machine’s normal day. The basket locks at drain position above the bath so drag-out drips back into the tank, and the torque-hinged lid carries a condensate deflector — the small engineering that separates trade equipment from appliances. Built tough, compliant for clinical reprocessing workflows, brilliant in the laboratory and completely at home in the workshop — the perfect all-rounder for people who value capability and quality.

Applications

Who runs the 15 — click your trade for the guide

Workshops & Trade Parts

Injectors, single carburettors, tooling and daily trays — the parts-washer replacement at bench scale.

Medical & Dental — volume

Cassette-scale reprocessing for day clinics — the step up when the PowerSonic queue forms.

Laboratories

Batch glassware with recipe-controlled consistency.

Electronics — batch

Board batches at 10–100% power control.

At the controls

Recipes, not memory

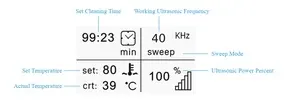

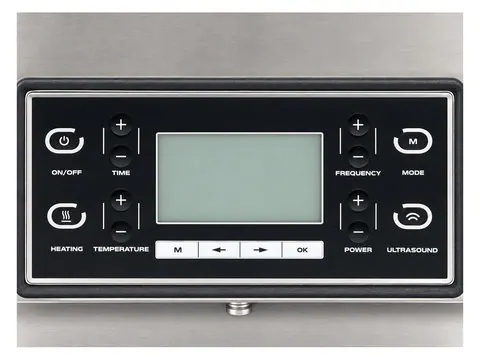

LCD touch panel

Time, temperature and power in one screen — glove-friendly, splash-sealed.

3 stored recipes

One per part family. Operators pick, press, load — every basket runs the documented cycle.

Stepless power 10–100%

Dial the intensity to the part, from delicate finishing to full demolition.

Load sensing

Delivered power held steady as load and temperature change through the shift.

Basket drain lock

Basket locks above the bath — drag-out drains back into the tank, not onto the bench.

Sweep · degas · heat to 80 °C

0.6 kW pad heating, thermostat protected — chemistry at its activation window.

Chemistry

Approved chemistry

Chemistry rule: these tanks are approved for the declared chemistry at the declared concentration and temperature. Acid chemistry needs an acid-duty specification. Hydrofluoric acid, hydrochloric acid and pickling solutions are not permitted in the tank; acid processes are only possible by indirect cleaning in a chemically inert secondary container, and only with written Misonics approval.
General degrease

FX Degreaser

The daily bath for oils, grease and workshop soils — 5% in water, works from warm.

Product, SDS & TDS →Ferrous carbon & paint

MetalTek 100

Grease, rust, scale, carbon and paint off steel and cast iron in one bath — the chemistry the 1.5 mm SS316 tank was built to hold. pH 14, so ferrous only.

Product, SDS & TDS →Precision & approvals

AquaVantage 815 GD

Aerospace-approved aqueous for new-manufacture and precision work; 815 QR-NF for MRO carbon.

Product, SDS & TDS →
Questions

Before you buy

What does dual frequency actually do for me?
One tank, two jobs done properly. 25 kHz produces big, aggressive cavitation for heavy soils; 45 kHz produces a denser, finer field for finishing and fine geometry. The MSX 30 carries both bands in one tank and the operator selects the one the load needs — 25 kHz for the heavy pass, 45 kHz for the finish — instead of forcing one compromise frequency. (MSX 15 runs a single 40 kHz band, right for consistent light-industrial loads.)
What chemistry can these tanks run?
The full aqueous alkaline range — FX Degreaser for daily duty, MetalTek 100 for baked carbon on ferrous work, the Brulin 815 family for precision and approvals work. The 1.5 mm SS316 tank is specified for exactly this. Acid descaling chemistry stays in dedicated acid tanks.
What do the stored recipes do?
Time, temperature and power saved per part family — three of them. The operator picks 'Carburettors' instead of remembering settings, and every basket runs the same documented cycle. The MSX 30 adds fully programmable cycles and selectable 25 / 45 kHz.
What is load sensing?
The generator continuously reads the acoustic load and holds delivered power steady as baskets go in, temperature climbs and solution ages — so the last cycle of the shift cleans like the first.
Can it really replace our parts washer?
For parts that fit the basket — yes, and it cleans the internals a spray washer never touches. The limit is basket size: 320 mm (MSX 15) or 490 mm (MSX 30). Bigger parts belong with the MSX 50–240 trolley machines.
Do they need special power?
No — both run from a standard 240 V 10 A socket on the supplied 3 m lead. Max draw is 900 W (MSX 15) and 1,650 W (MSX 30).
What generator drives these?
The MSX 30 runs our advanced G4-series industrial generator platform — the same resonance-tracking drive family as the floor machines, here in benchtop form, and the hardware behind the dual-frequency cycle. The MSX 15 runs a single-frequency industrial drive with the same load-sensing discipline.
What is in the box?
Stainless basket, torque-hinged lid (attached), ball-valve drain fitted, 3 m power lead and manual — 12-month warranty, bench-tested before dispatch.
Rent or buy?
The MSX 30 is in the rental fleet at $63/week — the popular route for shops proving the process before capital. The MSX 15 at $4,367 inc GST is bought outright from its page, or ask us about a trial.

Not sure how to compare ultrasonic cleaners? Read the buyer’s guide →

Basket and chemistry

What goes in the tank

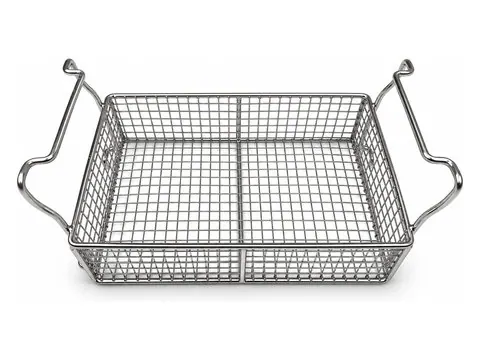

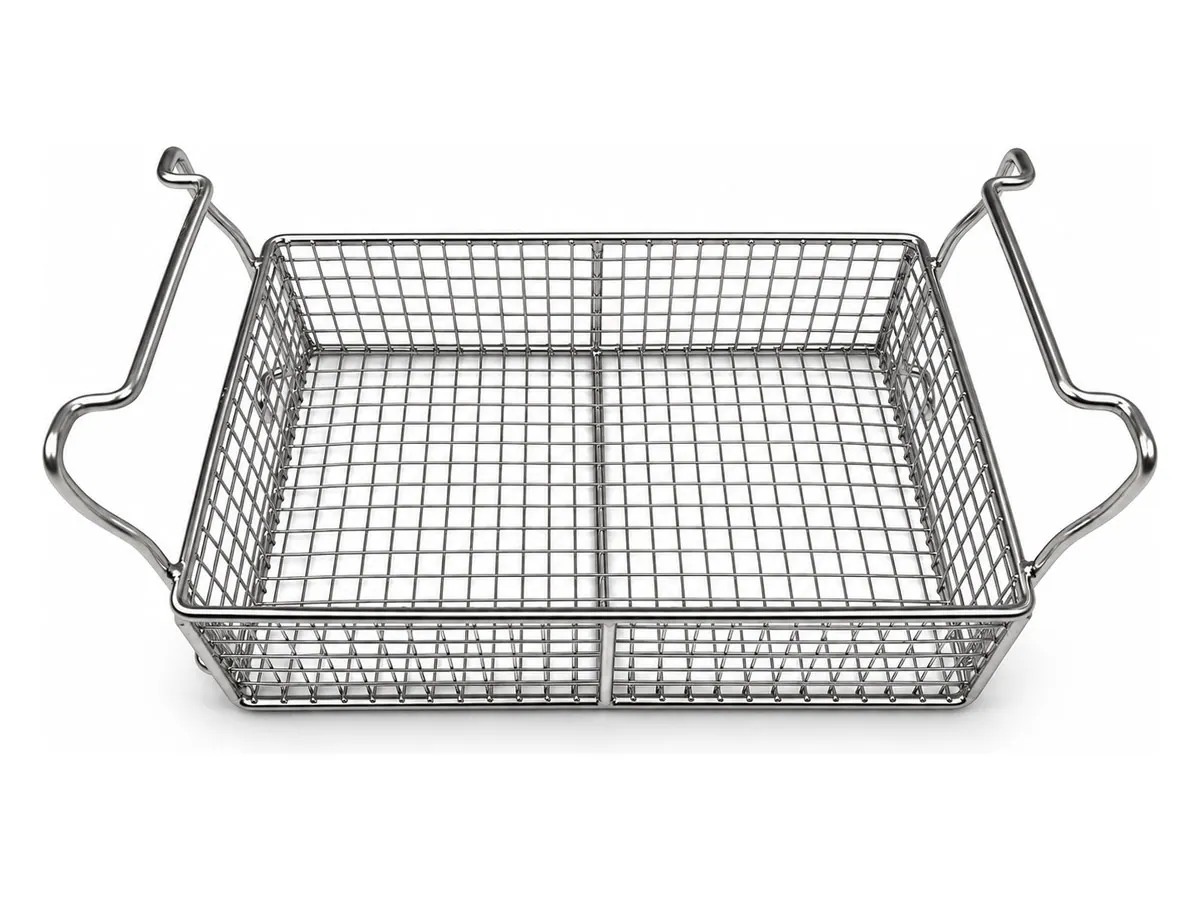

Misonics MSX 15 stainless basket, two compartments

MSX 15 basket

320 × 225 × 80 mm · 8 kg

Two compartments, stainless mesh, folded rim. Ships with every MSX 15. Spares and second baskets to order — run one while the other loads.

In the boxDrain lock

Ask for a spare →

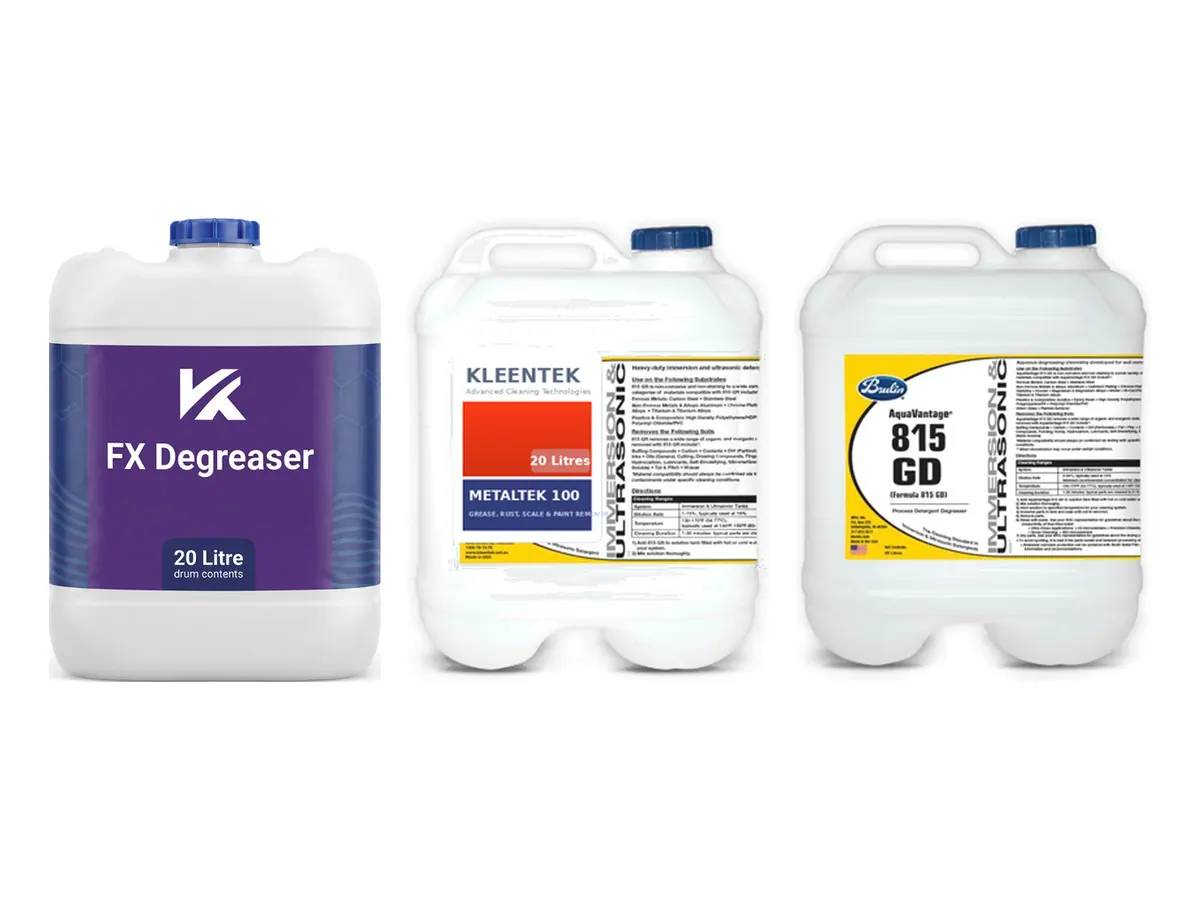

Misonics ultrasonic cleaning chemicals — FX Degreaser, MetalTek 100 and AquaVantage 815 GD in 20 litre drums

Chemistry for this tank

Chemistry matched to the job

Four questions — approval, soil, metal, machine — and the shortlist comes back with prices inc GST.

Find my chemical

The handles hook over the tank lip, so the basket locks above the bath at drain position — drag-out drips back into the tank, not onto the bench.

Complete the setup

Machine, matched chemistry and documented process

Chemistry for this machineFX Degreaser · MetalTek 100 · Brulin 815 familyBook a cleaning trialYour parts, our lab, documented resultSee the case studiesDocumented processes on machines like this one
Related

Next door in the range

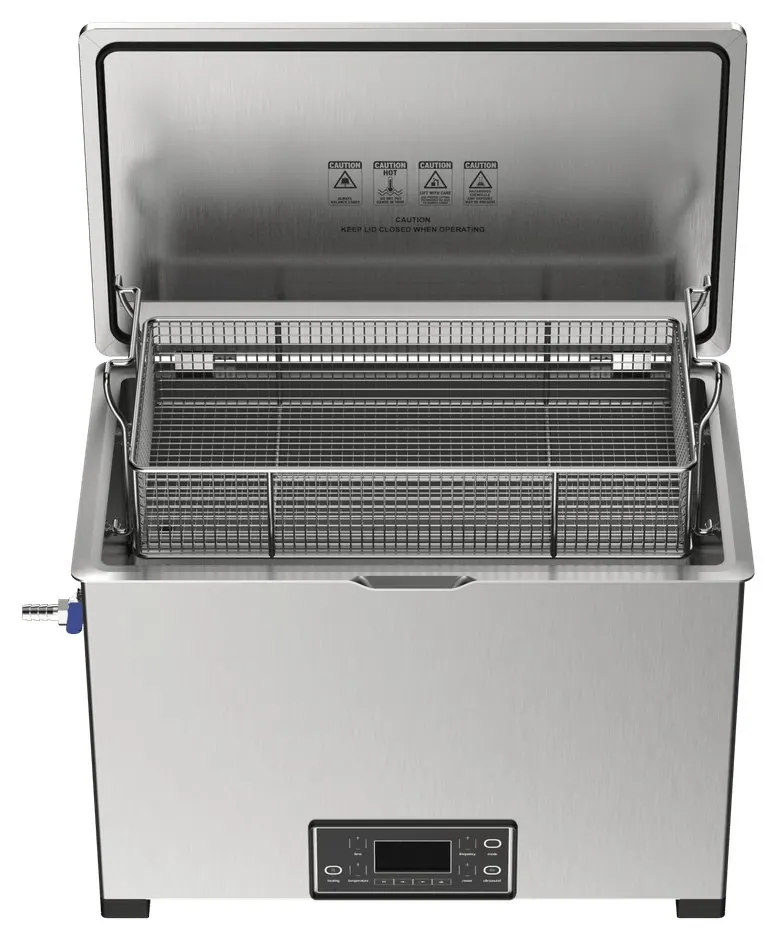

Misonics MSX 30

MSX 30

The dual-frequency workhorse
View model →
PowerSonic range

PowerSonic range

Light commercial · from $1,622.50 inc GST
View range →
Misonics MSX 50

MSX 50

Floor standing — the step up
View model →

See how the MSX 15 compares with the rest of the range on the ultrasonic parts cleaner page, or set it up for carburettors.

See also: Ultrasonic cleaning, explained.

Who builds it

Designed, specified and supported by Misonics

Australian-owned and engineered. Built locally and internationally to Misonics drawings, specifications and testing requirements, then supported from Melbourne with parts, service and the people who wrote the process. Sold direct and through our distribution partners.
