Misonics MSX 150 Ultrasonic Cleaner and Rinse Tank

The dual-tank wash line · medium industrial

2 tanksultrasonic + rinse
3,000 W2 generators
850×340baskets mm
240 Vsingle phase
Talk to an engineerCall 1300 647 664
Misonics MSX 150 industrial ultrasonic cleaner — Lid closed — three-quarter viewClick to enlarge

Lid closed — three-quarter view

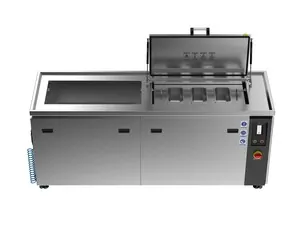

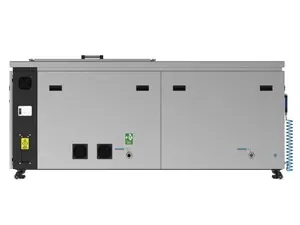

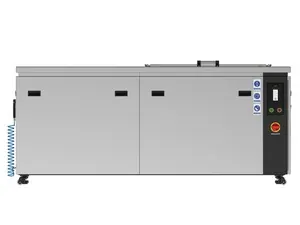

Product renders from the MSX 150 CAD model.

The dual-tank wash line
Price on application

Floor machines are quoted to site — power, chemistry, baskets and commissioning included in one number. Same-day response.

Or rent — $197/week
Every MSX 150 ships with

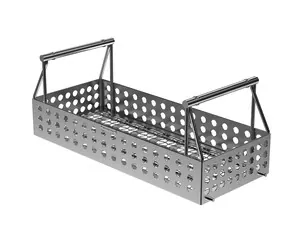

  • ✓ Stainless basket (850×340 mm)
  • ✓ Gas-strut lid
  • ✓ Programmable touchscreen · stored recipes
  • ✓ Level sensing · insulated 3 mm SS316 tank
  • ✓ Commissioning chemistry & first recipes
  • ✓ 12-month warranty
Specification document in preparation — available on request.

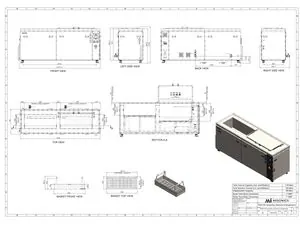

Download the general arrangement drawing (PDF, rev C)
Delivered and commissioned Australia-wide · spares held locally
Specification

Full specification — MSX 150

CAPACITY & DIMENSIONS
Model nameMSX 150
Tank Volume Capacity150 L per tank
Total Solution Volume152 L per tank (304 L both)

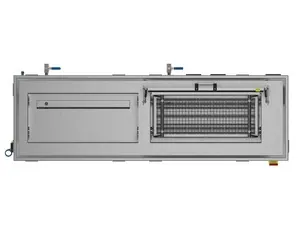

Useful Measurement (LxWxD)850×340×300 mm
Tank – Length900 mm
Tank – Width400 mm
Tank – Internal Depth500 mm
Tank – Working Depth300 mm
Basket – Length850 mm
Basket – Width340 mm
Basket – Wall Height150 mm
Overall Unit – Length2273 mm
Overall Unit – Width849 mm
Overall Unit – Height1018 mm
Tank MaterialSS316 – 3mm
ULTRASONIC SYSTEM
Ultrasonic Power3000 W
Ultrasonic Power Density20 W/L
Ultrasonic Frequency25 kHz
Multi-FrequencyNo
Number of Generators2
Number of Resonators2
Power Adjustable10–100%
Load SensingYes
Degas FunctionYes
Sweep FunctionYes
HEATING SYSTEM
Heating Power2.4 kW
Heating Element TypeThreaded SS316 Cartridge Heater
Heating Voltage240V AC
Temperature RangeAmbient–80 °C
Safety ThermostatYes
Insulated TankYes
FILTRATION & OIL MANAGEMENT
Auto-FillNo

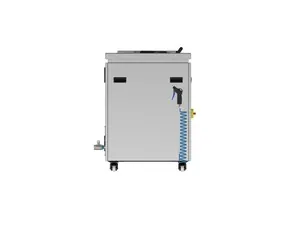

Main Tank Drain1" SS Ball Valve
CONTROL & SAFETY

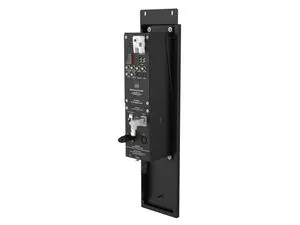

Control Panel TypeProgrammable Touchscreen Controller
Programmable CyclesYes
Stored Recipes4
Level Sensors1
Power InterlockYes
Non-Drip EdgeYes

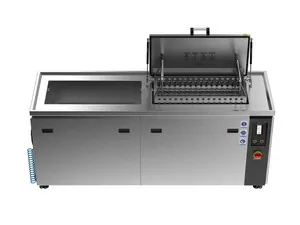

Lid TypeGas Strut – Manual
Weir LidYes – SS316L
Remote AccessNo
ELECTRICAL & POWER
Power Supply240V / 50Hz / 1-Phase
Wiring Requirements1P+E+N
Power Cable Provided3-core flexible lead c/w 10 A 3-pin plug
Socket Requirement240 V 10 A 3-pin socket (standard GPO)
Heating InterlockStandard — heating and ultrasonics do not run together
POWER DRAW
Connected Load (heating + ultrasonics)5400 W
Supply Required — heating interlocked240 V 10 A single-phase
Circuit Breaker10 A
COMPLIANCE & WARRANTY
Machine Warranty12 months
Printed ManualYes
Online ManualYes
Electrical Design StandardAS/NZS 3100

Model name is a name, not a volume: the number in MSX 150 is not the litres. Total solution volume is the whole fill, including the pockets that carry the resonators, heaters and platform. Tank volume is each tank on its own. All specifications — incl. dimensions, ultrasonic power and volume — are confirmed at quotation.

Why this machine

The dual-tank wash line

Two tanks in one 2.3-metre frame: ultrasonic wash on one side, heated rinse on the other — the two-stage process discipline from our multistage playbook as a single machine. Long 850 × 340 mm baskets suit shafts, rails, extrusions and long tooling, and the whole line runs from single-phase 240 V. For shops that know the rinse is half the result, this is the tidiest way to own both stages.

Applications

What runs through a 150

Workshops & Trade

From carby banks to cylinder heads — the daily-duty floor machine.

Engine rebuilders

Blocks and heads stripped in one immersion — read the documented process.

DPF & filtration services

The two-bath ash process at floor scale — flow-tested per filter.

Radiators & exchangers

Whole-core immersion recovery — fins, tubes and headers together.

Chemistry

Approved chemistry

Chemistry rule: these tanks are approved for the declared chemistry at the declared concentration and temperature. Acid chemistry needs an acid-duty specification. Hydrofluoric acid, hydrochloric acid and pickling solutions are not permitted in the tank; acid processes are only possible by indirect cleaning in a chemically inert secondary container, and only with written Misonics approval.
General degrease

FX Degreaser

The daily bath for oils, grease and workshop soils — 5% in water, works from warm.

Product, SDS & TDS →Ferrous carbon & paint

MetalTek 100

Grease, rust, scale, carbon and paint off steel and cast iron in one bath — the chemistry the 1.5 mm SS316 tank was built to hold. pH 14, so ferrous only.

Product, SDS & TDS →Precision & approvals

AquaVantage 815 GD

Aerospace-approved aqueous for new-manufacture and precision work; 815 QR-NF for MRO carbon.

Product, SDS & TDS →
Questions

Before you specify

Why 25 kHz on the floor machines?
Floor-scale parts carry floor-scale soils — baked carbon, heavy grease, scale. 25 kHz produces the large, aggressive cavitation that demolishes them, and stepless 10–100% power dials it back for finer loads. For genuinely delicate work alongside heavy work, pair with an MSX benchtop or ask about frequency options.
What does the weir system actually do (140/240)?
It is the bath-defence system: the displacement weir skims oil off the surface continuously, the 150 µm triple-interceptor basket catches solids, oil capture takes the skimmed layer out of circulation, and filtration polishes the bath. The result is written up in our oil-management guide — bath life multiplies and results stop drifting.
Single phase or three phase?
MSX 50, 70 and 150 run from 240 V single phase. The 140 and 240 need 415 V three-phase for their heating and generator load. Check the wall before you order — we confirm site requirements on every quote.
Are the tanks insulated?
Yes — all floor models carry insulated 3 mm SS316 tanks. Heat-up energy stays in the bath, the shop stays cooler, and operating cost drops with every shift.

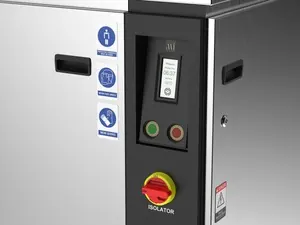

What is the controller?
A programmable touchscreen: time, temperature and power per stored recipe (four of them), with level sensors and interlocks per model. Operators run named recipes; supervisors own the parameters.
Can I trial before committing?
Two routes: the laboratory trial on your parts, or rental — every floor model is in the fleet from $140–$337/week. Most floor machines sell after the rental has already proven the process.
What goes wrong with baths at this scale — and how does the machine help?
Neglect, mostly: oil lids, sludge blankets, dead chemistry. The weir models automate the defences; on all models the ball-valve drain, insulated tank and recipe discipline make good habits cheap. Our filtration and oil-removal guides cover the operating rhythm.
What is in the box?
Basket, gas-strut lid, drain, level sensing, touchscreen controller, manual — 12-month warranty, commissioned advice on chemistry and first recipes included.

Not sure how to compare ultrasonic cleaners? Read the buyer’s guide →

Specify it properly

Machine, chemistry, process card and commissioning

Request a site quotePower check, basket fit, chemistry match — one number backRent it first — $197/weekThe floor proves the processSee the case studiesDocumented processes on machines this size
Related

The rest of the floor range

Misonics MSX 50

MSX 50

The floor-standing starter
View model →
Misonics MSX 70

MSX 70

The deep-part tank
View model →

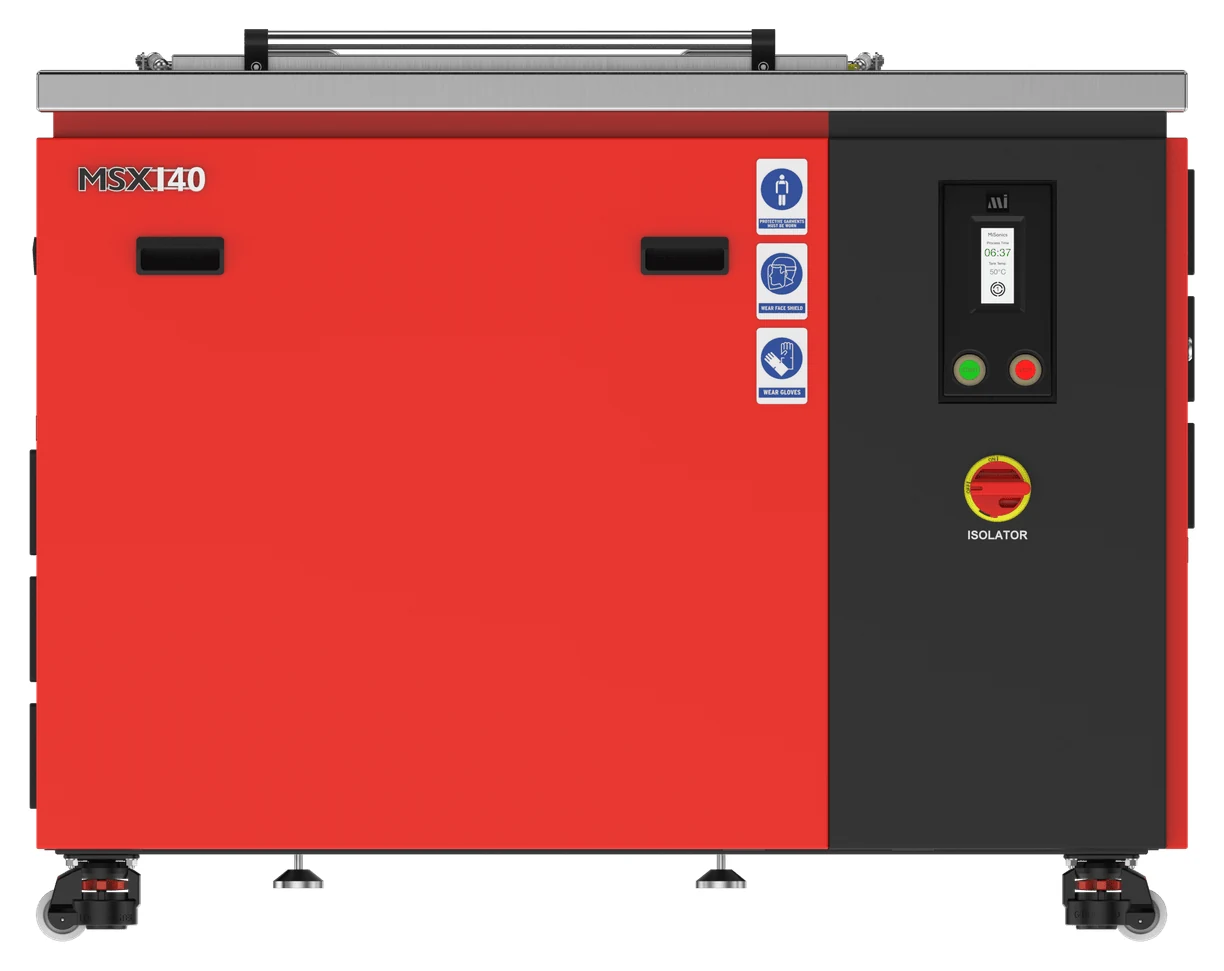

Misonics MSX 140
