CHP spark plugs: up to +67% service life from a bench-top machine
How scheduled ultrasonic recovery on an MSX30 stretched $8,000 plug sets from 6,000 to 10,000 hours in biogas CHP service.
5 min readBy Misonics application engineers
Biogas CHP spark plug sets cost thousands of dollars and foul on schedule — the impurities in biogas see to that. This application study documents how ultrasonic recovery on a bench-top MSX30 extended plug service life from 6,000 to 8,000–10,000 hours and paid for the machine inside a year.
Industry

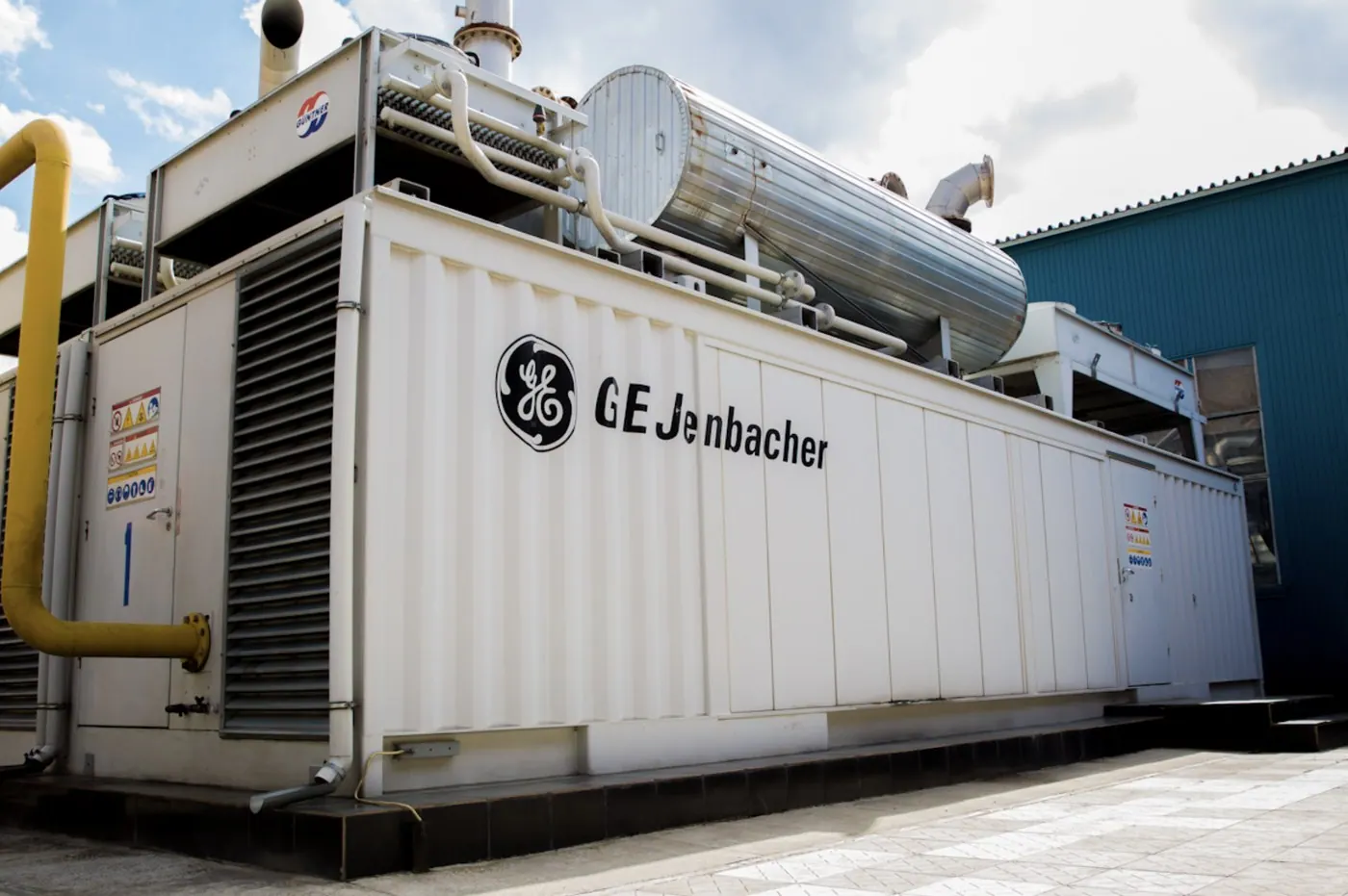

Biogas · CHP · power generation
Component
Pre-chamber spark plugs (Jenbacher J-series, MWM TCG class engines)
Contamination
Combustion deposits · siloxane ash · fouling
Machine
Misonics MSX30 bench ultrasonic
Chemistry
Outcome
Up to +67% service life · <12 month payback
The contamination
Combustion deposits
Biogas is not a clean fuel: lean-burn combustion leaves progressive deposits on electrodes and pre-chamber passages that degrade ignition quality, output and emissions.
Siloxane and mineral ash
Trace siloxanes in digester and landfill gas burn to abrasive glassy ash — the deposit that ends plug life early and resists every workshop brush.
The geometry problem
Pre-chamber plugs foul inside the chamber and its transfer bores — exactly where no mechanical cleaning reaches and where cavitation works at full strength.
The process
Process diagram
Parameter
Value
Machine
Misonics MSX30 bench-top ultrasonic
Chemistry
Plug-safe aqueous detergent
Cycle
Established per application
Verification
Visual + electrode gap and insulator check before return to service
Before and after
BEFOREPre-chamber plug off a biogas CHP engine — fouled electrodes and deposit through the chamber ports.AFTERThe same plug after ultrasonic recovery — electrodes and ports cleared, returned to service.
The results
Service life up to +67%. Plug sets that previously retired at 6,000 hours now run 8,000–10,000 hours with scheduled ultrasonic recovery.
Machine payback under 12 months. Against spark plug sets costing $8,000+ per engine, the MSX30 recovered its price within the first year.
Ignition quality maintained. Recovered plugs restore combustion stability, output and emissions behaviour between replacements.
A maintenance routine, not a rescue. Recovery is scheduled into service intervals — plugs are cleaned on rotation, not when the engine complains.
Hardware and chemistry

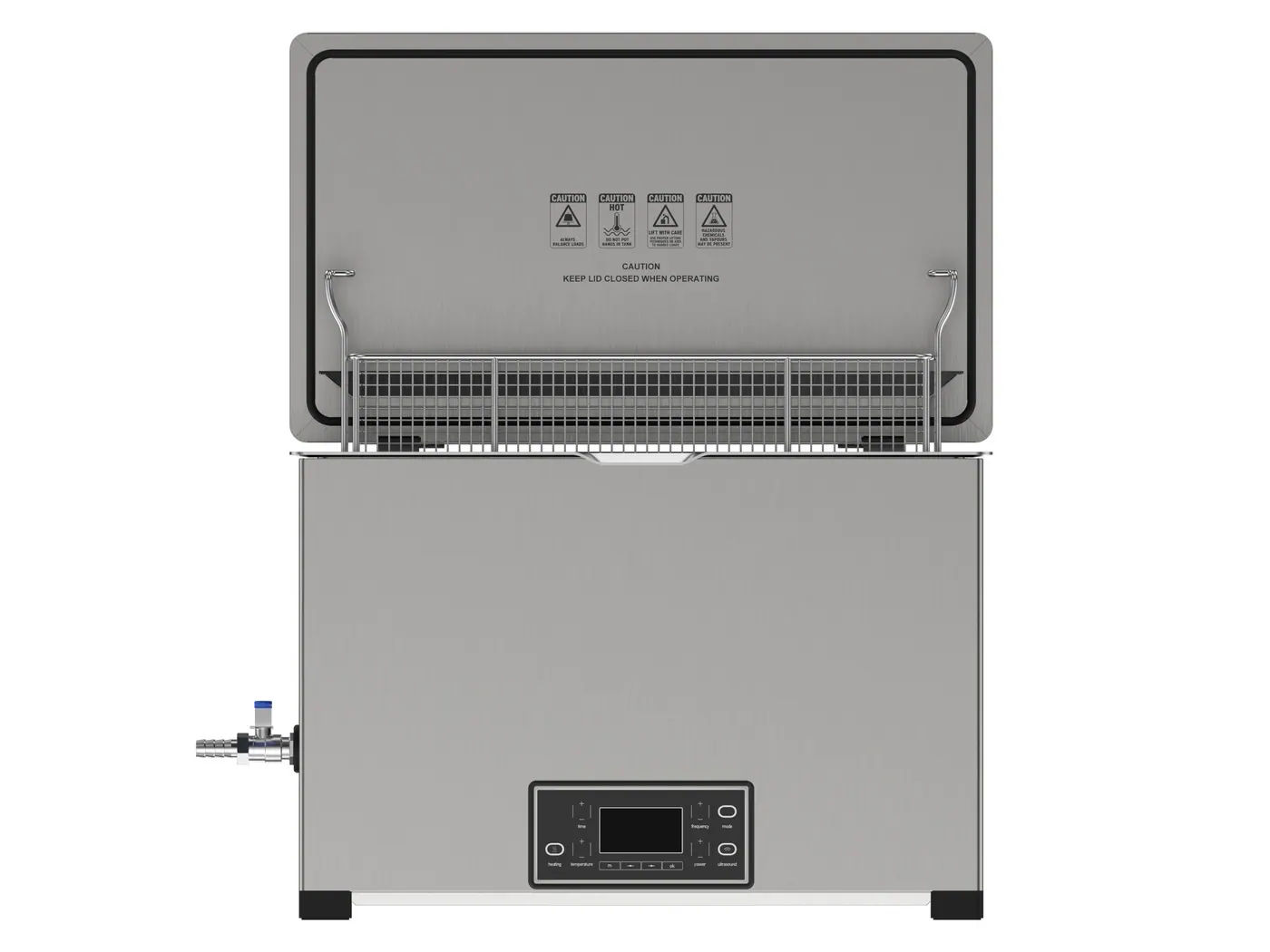

Misonics MSX30
The bench-top workhorse of the MSX family — the right size for a plug rotation program in any CHP plant workshop.
The arithmetic sells itself. One plug set per engine per year not purchased pays for the machine; every set after that is margin. The same recovery logic applies to injectors, valves and pre-combustion hardware across a gas-engine fleet.
Put a recovery bench in your plant
The program: one bench-top machine, one rotation schedule
Combustion deposits from lean-burn running and siloxane ash, which burns to a glassy abrasive deposit inside the pre-chamber and transfer bores where no brush reaches.
What did ultrasonic recovery do to plug life?
Service life went from 6,000 hours to 8,000 to 10,000 hours, up to 67 percent more, on plug sets that cost thousands of dollars.
What machine does it need?
A bench-top MSX 30 with a plug-safe aqueous detergent, a rinse and a dry, with gap and resistance checked before the plugs go back. The machine paid for itself inside a year.
Tell us what the part is, what comes off it, and what it has to pass. Technical sales will tell you whether ultrasonics is the right answer for that part and what it takes to run it on your own floor.
